ROLAND TM-1
« on: January 23, 2019, 01:32:48 PM »
ROLAND TM-1





NAMM 2019: Roland opens hybrid drumming up to the masses with the TM-1
The TM-1 is the newest addition to Rolandís vast hybrid drumming arsenal, and is aimed squarely at drummers yet to dabble in the hybrid world, but who want to bring a wider range of sounds to their performances.
The small trigger module features a pair of mono inputs (which can also be used for one stereo pad) for expanding your acoustic drum kit with pads or triggers. As a result you can enhance your acoustic drum sound by layering electronic sounds or expanding the range of sounds at your disposal.
The TM-1 comes preloaded with a range of sounds - expect the usual 808 sounds, hand claps and percussion - meaning you can get going straight away. If youíd prefer to add your own sounds, like a snare sample from your bandís latest album for example, you can manage and add your own using Rolandís Wave Editor software for PC, Mac, iOS and Android.

Sounds can be enhanced further via Pitch, Decay and Sensitivity controls on the module itself.

Control of the floor-friendly unit comes via a pair of footswitches which enable you to select or mute your sounds with ease. Particularly handy for making changes on the fly during a gig.

With a suggested retail price of $159,  the TM-1 certainly represents an affordable route into the hybrid drumming world

Specifications
Kits    15
Preloaded Sounds    30
User Sample
    Number of User Sample: 30
    Sound Length: Approx. 6 second/Sample
Data Format
    Mac OSX:WAV, AIFF, MP3, AAC, Apple Lossless
    Windows:WAV (44.1 kHz, 16/24 bits)
    iOS:WAV, AIFF, MP3, AAC, Apple Lossless
    Android:WAV (44.1 kHz, 16 bits), MP3
    *The Application ĎTM-1 Editorí is required.
Display
    7 segments, 1 character (LED)
Controls
    [SENS] knob (TRIG1, TRIG2)
    [PITCH] knob (TRIG1, TRIG2)
    [DECAY] knob (TRIG1, TRIG2)
    [LEVEL] knob (TRIG1, TRIG2)
    [MODE SELECT] button
    [MUTE] switch
    [KIT SHIFT] switch
    [POWER] switch
Indicator
    Trigger Indicator (TRIG1, TRIG2)
Connectors
    TRIGGER IN jack : 1/4-inch phone type, mono
    OUTPUT jack : Stereo 1/4-inch phone type
    *When setting the Output Setting to the "MIX", The mixed sound of trigger 1 and 2 is output in mono.
    *When setting the Output Setting to the "INDIVIDUAL", Each trigger is output separately to left and right (TRIG1: L-Side, TRIG2: R-Side).
    PHONES jack: Stereo 1/4-inch phone type
    USB port: USB type B
    DC IN jack
    USB MIDI
Power Supply

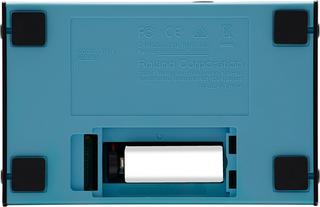

    Alkaline battery (9 V, 6LR61)
    AC adaptor (DC 9 V, sold separately)
    Supplied from the computer via USB port
    Current Draw: 100 mA (DC IN)   250 mA (USB)
    Expected battery life under continuous use : Approx. 3 hours
    *It depends on the batteries' specification, capacity, and conditions of use.

Size and Weight
Width
    150 mm ( 5-15/16 inches)
Depth
    95 mm (3-3/4 inches)
Height  60 mm (2-3/8 inches)
Weight (including batteries)
    550 g ( 1 lb 4 oz)
Accessories
    Owner's manual
    Leaflet "USING THE UNIT SAFELY"
    Alkaline battery (9 V, 6LR61)
    USB type B Cable

Options (sold separately)
    AC adaptor (PSA-S series)
    Acoustic Drum Trigger (RT series)
    Pads (PD series, PDX series, BT-1)
    Cymbals (CY series)
    Kick (KD series)
    Kick pedal (KT series)
    Footswitch (DP series, BOSS FS-5U, FS-6, FS-7)
    Stereo Split Cable (PCS-31L)
    Personal Drum Monitor (PM series)

ROLAND TM-1 TRIGGER MODULE

ROLAND TM-1 INTRO

ROLAND TM-1 FEATURES

ROLAND TM-1 EDITOR/iOS
